NADA Alarm Printer MP-262II A-35KR3IF

26/02/2022 10:01

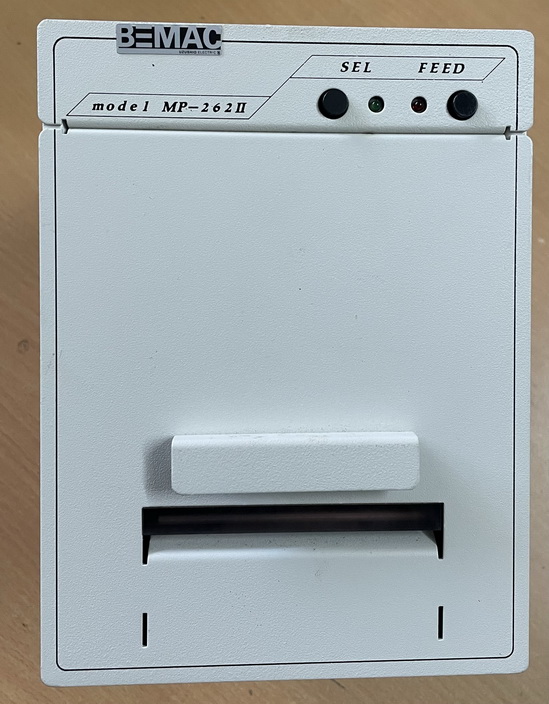

BEMAC NADA Printer MP-262II

MODEL: MP-262II A-35KR3IF

SERIAL NO.: 10511A01ER

MAKER: NADA ELECTRONICS LTD

MADE IN JAPAN

CONDITION: NEW 100%



Overview

It is a multifunctional journal printer that can print red / black, mixed printing of various character types, external characters, graphics by image, and JIS 1st and 2nd level kanji as an option.

specification

Model MP-262F
interface Serial (RS-232C)
Parallel (based on Centronics)
Printing method Serial impact dot matrix
Total number of dots 210 dots / line
Printing speed Approximately 2 lines / sec (for 5x7 fonts)
Paper feed speed Approximately 9 lines / second (10 dots / line)
Character dimensions and number of
print digits
fontWxH (dot)WxH (mm)number of digits
ANK 5x7 1.6x2.8 35
ANK 7x7 1.3x2.8 42
ANK 8x16 2.5x5.8 26
Chinese characters (full-width) 16x16 5.0x5.6 13
Chinese characters (reduced) 16x16 2.5x5.6 26
Recording paper Conformity recording paperpaper widthRoll paper outer diameter
/ folding lengthlengthInner diameter of winding coreWinding core outer diameterPaper thicknessPaper thicknessmass
Roll paper (plain paper) Folding paper (plain paper)
NR-760 NF-760
76mm
Φ60mm 5 inches
35m
φ12mm
φ18mm
0.06 to 0.085 mm
52.3 ~ 64g / ㎡
150g
Inking Ribbon cassette method (red / black 2 colors)Compatible ink ribbonlifespan
IR-31RB
Red / black 600/900,000 characters (25 ° C continuous printing)
Operating environment Temperature: 0 ° C to 50 ° C
Humidity: 30% to 90% RH (non-condensing)
Storage environment Temperature: -20 ° C to 70 ° C
Humidity: 5% to 95% RH (non-condensing)
reliability Print head lifeOther than print head MCBFCutter part life MCBF
150 million characters
10 million lines
300,000 full cut
Power supply AC (standard)DC (optional)  Input voltageAverage currentPeak currentStandby currentInrush current
AC85-132V DC21.6-26.4V
300mA 600mA
3.0A 4.0A
90mA 162mA
22A 1.8A
Dielectric strength Roll paperFolding paper
Power supply batch-FG AC1500V 1 minute (test current 20mA)
Impossible
Insulation resistance Roll paperFolding paper
Power supply batch-FG between DC500V 50MΩ or more
Power supply batch-FG between DC500V 10MΩ or more
weight MP-262FRoll paperFolding paper
About 3.9kg
About 3.8kg
Does not include mounting bracket (65g x 2), ink ribbon, and recording paper

Conformity recording paper

NR-760  NF-760

Compatible ink ribbon

IR-31RB

download

Catalog
Catalog (PDF)

Instruction manual
Instruction manual (PDF)

Operation manual
Operation manual (PDF)
