Cảm biến khí gas (Combustible gas sensor): 0-100% LEL Flammable Sensor

07/03/2016 16:35

Honeywell Sensepoint 0-100% LEL Flammable Sensor

Part#: 2106B1200

Sensepoint 0-100% LEL Flammable Sensor M25: Sieger Sensepoint Gas Detector Transmitter with LEL Sensor for explosives/combustibles 0-100% LEL 3-wire mv Bridge output. ATEX/IECEx Certified. Part# : 2106B1200

Flammable
0-100% LEL
Operating Temp -40 to +80˚C
Operating Humidity Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing)
Storage Conditions 0 to 25˚C; 30 to 70% RH
Operating Pressure 90 to 110kPa
Warm-up Time < 10 minutes
Response Time
T20
T50 < 5 secs
T90 < 10 secs
Supply 200mA; 0.7W maximum
Signal Output mV bridge
Linearity < 5% fsd or ±10% of reading
Operating Life 5 years (typical)
Storage Life Typically, over 5 years when in original sealed packaging
Stability (zero)
with time* < ±3% fsd / yr
with temperature** < ±1% fsd
with humidity < ±1% fsd
Stability (span)
with time* < ±3% fsd / yr
with temperature*** < ±3% fsd
with humidity < ±2% fsd
Weight 190g
Construc. Materials Polyphenylene Sulphide (PPS)
I.P. (NEMA) Rating IP65 (standard), IP67 (with weather protection fitted)
Certification Details
(ATEX/ IECEx)
II 2 GD Ex d IIC Gb T85ºC
Tamb -40ºC to +55ºC
II 2 GD Ex d IIC Gb T100ºC
Tamb -40ºC to +70ºC
II 2 GD Ex d IIC Gb T135ºC
Tamb -40ºC to +80ºC
tb IIIC A21 Db IP67
Baseefa08ATEX0265X
IECEx BAS08.0068X
Applicable Standards This product complies with the relevant CE standards including: EMC to EN50270, Flammable sensor to EN60079-29-1
Made in United Kingdom



Electrical Connections

Sensepoint Electrical Connections

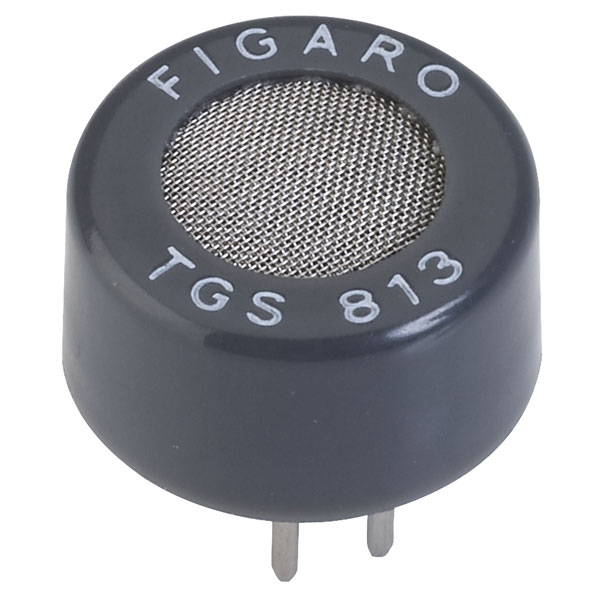

Figaro TGS-813
TGS 813 - for the detection of Combustible Gases

Features:
* General purpose sensor with sensitivity to a wide range of combustible gases * High sensitivity to methane, propane, and butane * Long life and low cost * Uses simple electrical circuit
Applications:
* Domestic gas leak detectors and alarms * Portable gas detectors
