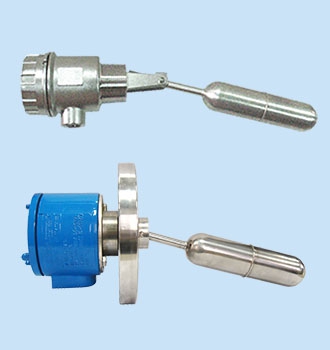

Thiết bị báo mức la canh bằng phao từ (Magnetic float type level sensor for bilge):
Specifications:
1. Switching Volts: 250 VAC
2. Switching Current: 0.7~2A
3. Contact : NO / NC
4. Max. Pressure:30 kg/cm² SUS / 5 kg/cm² PVC, PVDF, PP
5. Max. Length : 5 M
6. Temperature Range: 120°C SUS, PVDF / 80 °C PP, PVC
7.. Body Material: SUS304 / SUS316
8. Connection : Flange / Thread
Resolution Accuracy: +/- 12mm standard; +/- 6mm,
Material: SS304, SS316, L=0.5m (option)
Enclosure Housing: IP65
Explosion proof.
Thiết bị đo mức, báo mức két loại mặt bích lắp ngang.
HORIZONTAL MAGNETIC LEVEL SWITCH
FLANGE TYPE/ SQUARE FLANGE TYPE
Enclosure housing | : | Weather proof IP65 |
Material | : | Wetted parts SS316 or SS304 |
Temperature limits | : | -30°C to 150°C |
Pressure limits | : | 3.0 MPa (30 kg/cm²), option: up to 4.5 MPa |
Switch function | : | SPDT Micro switch |
Switch rating | : | 3A/250VAC, 3A/30VDC, 0.4A/125VDC |
Conduit connection | : | 1/2"NPT female, option |
Float working specific gravity | : | >=0.7 (option: less than 0.7 available on request) |
